Zlin
Zlin
Crossfader
Model of 1982
Resources
Description
Zlin [zlin] is a small utility module that can act as an audio signal and CV cross-fader, a linear VCA with drone control, a ducking VCA, or a feedback controller. It is a tool perfect for any modular environment – a missing piece of the puzzle greatly enhancing the creative potential of any system. Use it to construct unusual waveforms, simulate classic subtractive-style dynamic timbre shaping without the need for any filters, or simply morph between rich signals.

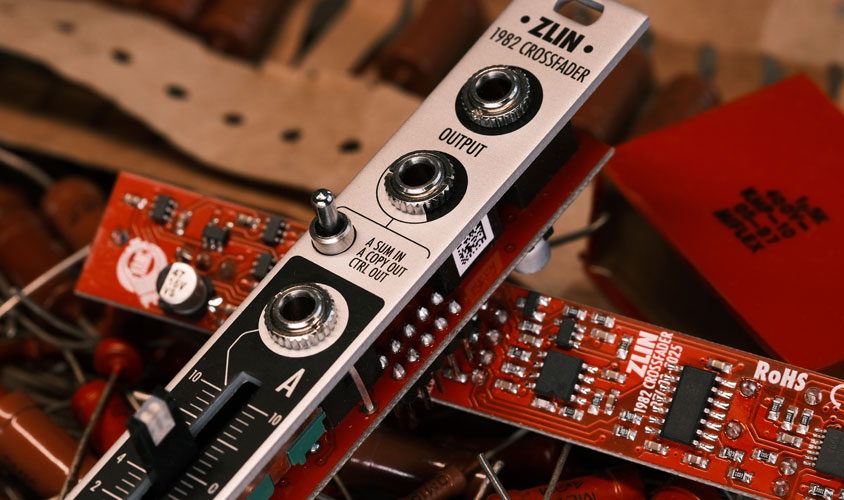

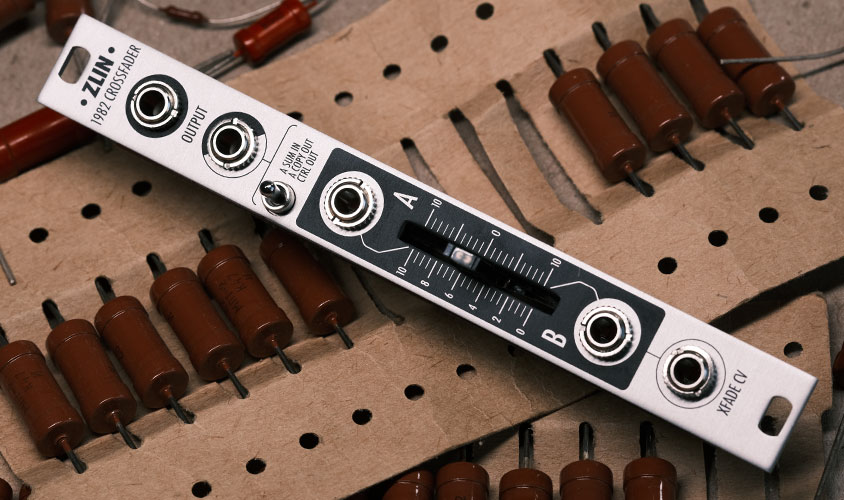

As Zlin is DC-coupled and built around a modern high-quality dual VCA chip, it delivers a wide dynamic range with low noise and distortion. A slider potentiometer with an illuminated LED provides visual feedback of the module’s state. An auxiliary jack with three selectable functions adds further flexibility for creative patching.
For detailed information, please read the manual.
Features
- Voltage and manually controlled crossfader
- Linear, DC-coupled VCA with drone and duck functions
- Feedback controller
- Visual indication of mix ratio
- AUX jack for patching tricks
Technical details
- Eurorack synth compatible
- 3hp, 32mm deep (inluding cable bracket)
- Current draw: +25mA / -25mA
- Reverse power protection
