Arad

Arad

Resonator Commander
Model of 1950

  • Arad
  • Arad
  • Arad

Description

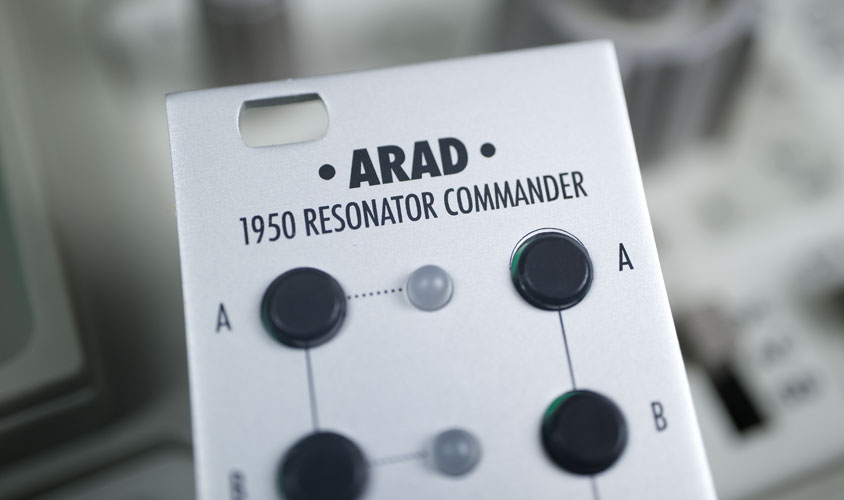

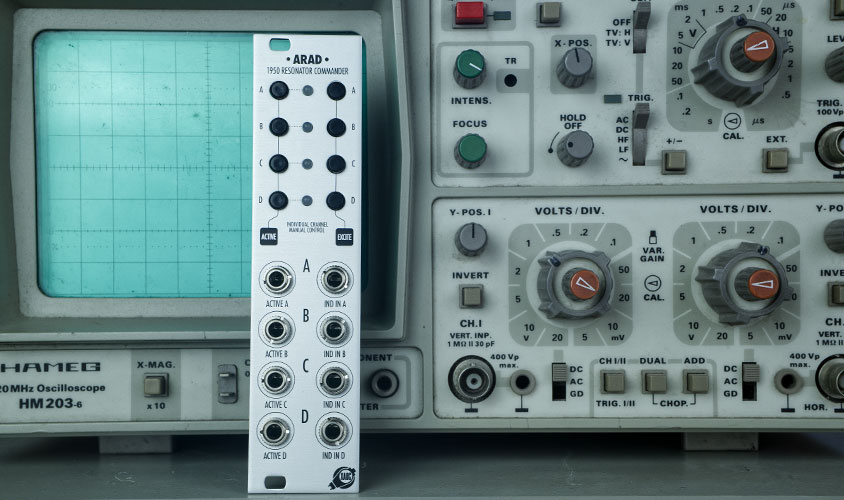

Arad [ˈarat] is an expander for the Oradea quadruple resonator. It adds three additional features. Arad features direct audio inputs for individual channels, so you can use each channel for a different audio source (the individual channel outputs are already incorporated into the main module). There are buttons and gate inputs for manual and/or remote clickless muting and unmuting of the channels. Another group of four buttons acts in parallel to the EXCITE inputs of Oradea, allowing for manual triggering. For detailed information, please read the manual.

Features
  • Expander for Oradea Quadruple Voltage Controlled Resonator
  • Clickless muting and unmuting buttons and gate/trigger inputs
  • Manual trigger buttons

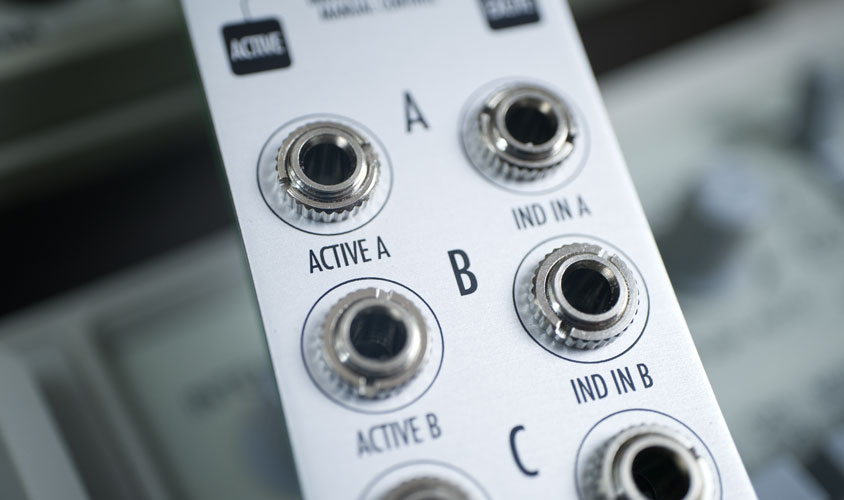

  • Individual audio input for each channel
Technical details
  • Eurorack synth compatible
  • 6hp, 30mm deep (incl. ribbon bracket)
  • Current draw: +10mA / -0mA
  • Reverse power protection
